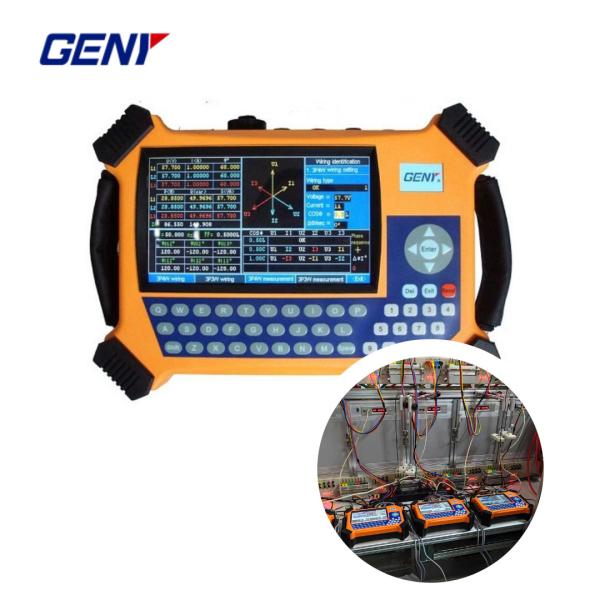

YC98S1 Standard Portable Testing Device Professional ODM Manufacturer

Name: YC98S1 Standard Portable Testing Device Professional ODM Manufacturer
Brand: GENY
Price: 1 USD

Brand Name : GENY

Model Number : YC98S1

Certification : ISO, CE

Place of Origin : CHINA

Payment Terms : L/C, T/T, D/P

Supply Ability : 300/Year

Model NO. : YC98S1

Display : Digital

Installation : Direct Connected

Usage : Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment : Three-phase Three-wire

Theory : Electronic Meter

Power Meter Connection : Terminal

Measured Signal : Continuous Wave

Type : Energy Meter

Customized : Customized

Trademark : GENY

Transport Package : Carton

Origin : China

HS Code : 9030849000

Port : Guangzhou, China

Contact Now

YC98S1 Standard Portable Testing Device Professional ODM Manufacturer

Product Description

Exceptional Measurement Precision

Our equipment delivers outstanding accuracy of 0.05%, ensuring that your measurements are as precise as possible.

Vibrant Large-Screen Display

Enjoy a spacious and vivid color display that offers a clear, intuitive visual experience, simplifying the interpretation of data.

Innovative Screen Copy Feature

The innovative screen copy feature simplifies the duplication of screen content, making record-keeping and information sharing a breeze.

Dynamic Waveform Visualization

The waveform display function provides a dynamic view of electrical signals, facilitating a detailed analysis of their characteristics.

Advanced Vector Diagram Analysis

The vector diagram function offers a comprehensive visual analysis of electrical parameters, deepening your understanding of their interdependencies.

Efficient Energy Accumulation

The energy accumulating feature allows for efficient data collection and processing, perfect for long-duration testing needs.

Synchronized Calibration with Dual Pulse Inputs

The capability to input two pulse signals simultaneously ensures master and slave meters are synchronized for calibration, delivering unmatched accuracy in comparative measurements.

Seamless Data Management via RS232 Interface

Effortlessly manage measurement data with a computer through the RS232 interface, streamlining data storage and analysis.

Product Parameters

Application Conditlons and Requirements
Environment			Safety
Operation Temperature	Relative Humidity	Altitude	IP Class	Conformity
-25°C-+45°C	40%--95%	<2500m	IP30	CE conform

Type	YC-98S1
Test voltage
Range	30V-480V
Error	±0.05%
Harmonic	2nd-51st
Test current
Range(direct connection)	0.05-10A
Range(clamp CT)	100A
	5A,500A,1000A,2000A
	(option)
Error(direct connection)	±0.05%
Error(clamp CT)	±0.2%(5A,100A)
Error(clamp CT)	±0.5%(other)
Harmonic	2nd-51st
Power measure error
Active power(direct connection)	±0.05%
Active power(clamp CT)	±0.2%(5A,100A) ±0.5%(other)
Reactive power(direct)	±0.1%
Reactive power(clamp CT)	±0.2%(5A,100A)
Reactive power(clamp CT)	±0.5%(other)
Energy measure error
Active energy(direct)	±0.05%
Active energy(clamp CT)	±0.2%(5A,100A)
Active energy(clamp CT)	±0.5%(other)
Reactive energy(direct)	±0.1%
Reactive energy(clamp CT)	±0.2%(5A,100A)
Reactive energy(clamp CT)	±0.5%(other)
Phase angle
Range	0°-360°
Error	±0.05°
Frequency
Range	45Hz-65Hz
Pulse output
High frequency output(CH)	--
Low frequency	3600imp/kWh
Pulse ratioPulse ratio	1:01
Output level	5V
Pulse input
Input channel	2
Input level	5-10V
Input frequency	Max.100Hz
Display
Resolution	7"TFT color
Function
Vector diagram	√
Waveform	√
Energy accumulation	√
CT ratio test	√
Local parameter input	√
Wiring emulation	√
Self-calibration	√
Recorder check	√
Data storage	√
Data storage qty	5000
External extend	√
Screen printing	√
Communication port	USB/RS232
Communication with	√
Upload data	√
External mini printer	√
External keyboard	√
Other
Voltage Supply way	External power
Voltage Supply way	test lead power
Voltage Supply	55-480V,50/60Hz
Dimensions(WxHxD)	245x168x67
Weight(kg)	1.5kg
